Description

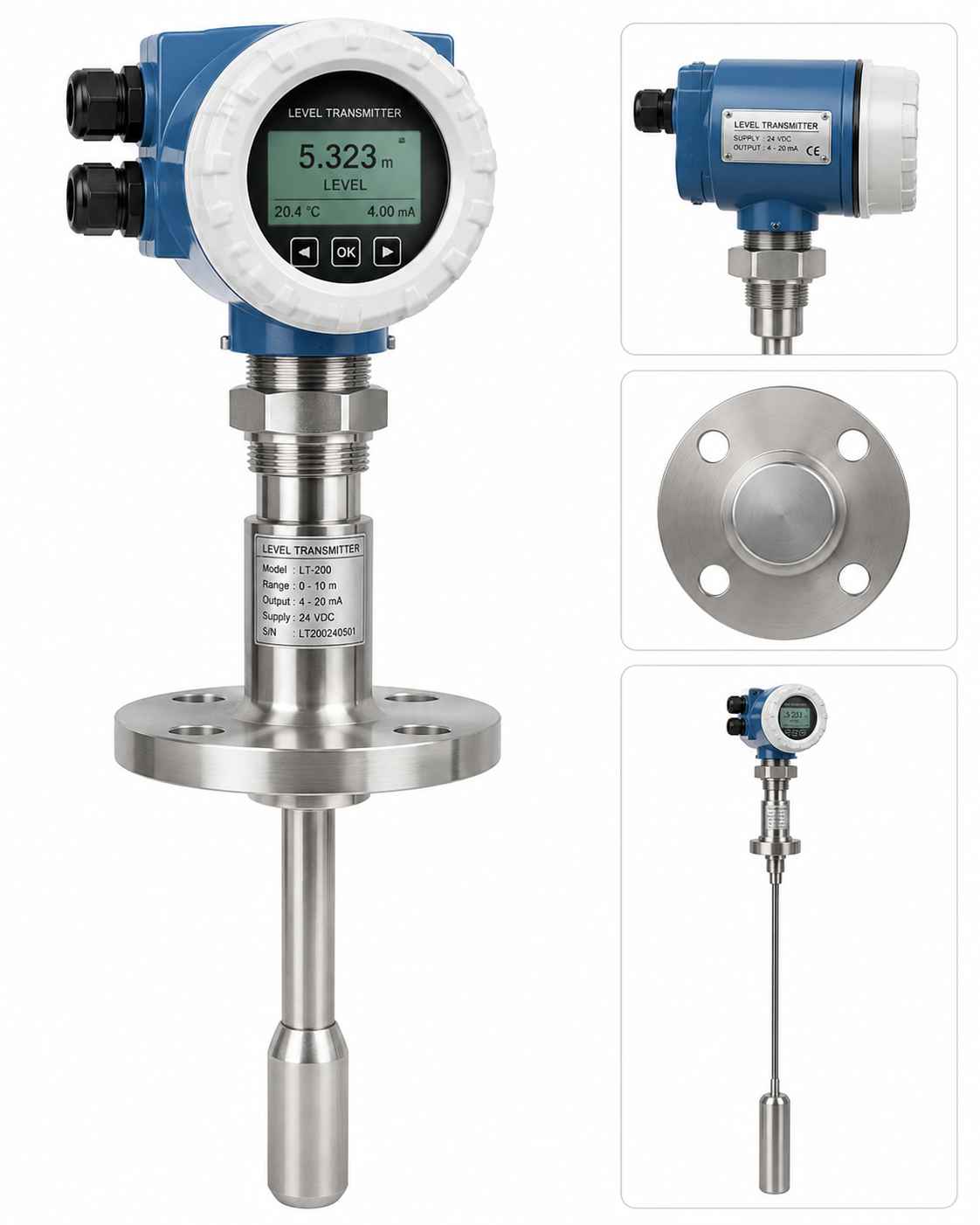

Level Transmitter

The Level Transmitter is an industrial instrumentation device designed for accurate and continuous measurement of liquid or solid material levels in tanks, vessels, silos, and process containers. It detects the level of the process medium and converts the measured value into a standard electrical signal for monitoring, indication, control, and automation systems.

Designed for reliable operation in demanding industrial environments, the Level Transmitter can be used across water treatment, chemical processing, pharmaceutical, food & beverage, oil & gas, power generation, and general process industries. Depending on the application, different sensing technologies and process connections can be selected to suit the medium, tank geometry, pressure, temperature, and measurement range.

Key Features

• Continuous and reliable level measurement
• High accuracy and repeatability
• Suitable for liquids and selected bulk solids
• Compact and rugged industrial construction
• Digital indication options available
• 4–20 mA output for process control
• Optional HART or digital communication
• Wide measurement range options
• Multiple process connection configurations
• Suitable for demanding industrial environments
• Easy integration with PLC, DCS, and SCADA systems
• Low-maintenance operation

Working Principle

The Level Transmitter uses a sensing element to detect the level of the process material inside a tank or vessel. The measured level is processed electronically and converted into a proportional output signal.

Depending on the selected model, level measurement may be based on technologies such as hydrostatic pressure, ultrasonic, radar, capacitance, or other level-sensing principles. The transmitter continuously processes the measurement and provides a standardized signal to connected monitoring and control equipment.

This enables operators to monitor tank levels in real time and maintain accurate control of filling, storage, dosing, and process operations.

Technical Specifications

Parameter	Specification
Product Type	Level Transmitter
Measurement	Continuous Level Measurement
Measuring Medium	Liquid / Solid, Model Dependent
Measuring Principle	Model / Technology Dependent
Measurement Range	Model Dependent
Accuracy	Model Dependent
Output Signal	4–20 mA
Communication	HART / Digital, Model Dependent
Display	LCD / Digital Display, Optional
Process Connection	Threaded / Flanged / Model Dependent
Wetted Material	SS304 / SS316 / Model Dependent
Power Supply	Model Dependent
Process Temperature	Model Dependent
Operating Pressure	Model Dependent
Protection Rating	Model Dependent
Installation	Tank / Vessel / Silo
Application	Industrial Level Measurement

Applications

The Level Transmitter is suitable for:

• Water & Wastewater Treatment
• Chemical Processing Plants
• Pharmaceutical Industries
• Food & Beverage Industries
• Oil & Gas Applications
• Power Generation Plants
• Storage Tanks
• Process Vessels
• Industrial Automation
• Effluent Treatment Plants
• Bulk Material Storage
• Process Monitoring & Control

Advantages

The Level Transmitter provides continuous real-time level information, helping industries improve process control, prevent overfilling or emptying, and optimize material handling. Its standardized output signals allow easy connection with PLC, DCS, SCADA, indicators, controllers, and other industrial automation systems.

Different sensing technologies and configurations allow the transmitter to be selected according to the specific process requirements, making it a flexible solution for a wide range of industrial level measurement applications.

Installation & Operation

The transmitter should be installed at a suitable location according to the selected measurement technology and manufacturer’s installation guidelines. Proper consideration should be given to the tank geometry, process conditions, measurement range, mounting position, temperature, pressure, and characteristics of the measured medium.

Correct installation and configuration help ensure stable measurement, accurate readings, and reliable long-term operation.

Industries Served

Water Treatment | Chemical | Pharmaceutical | Food & Beverage | Oil & Gas | Power | Manufacturing | Process Automation

Product Note

Exact specifications such as measurement range, accuracy, sensing technology, pressure rating, temperature range, process connection, power supply, and communication protocol vary according to the selected Level Transmitter model. Refer to the relevant product datasheet for final technical specifications.
