Description

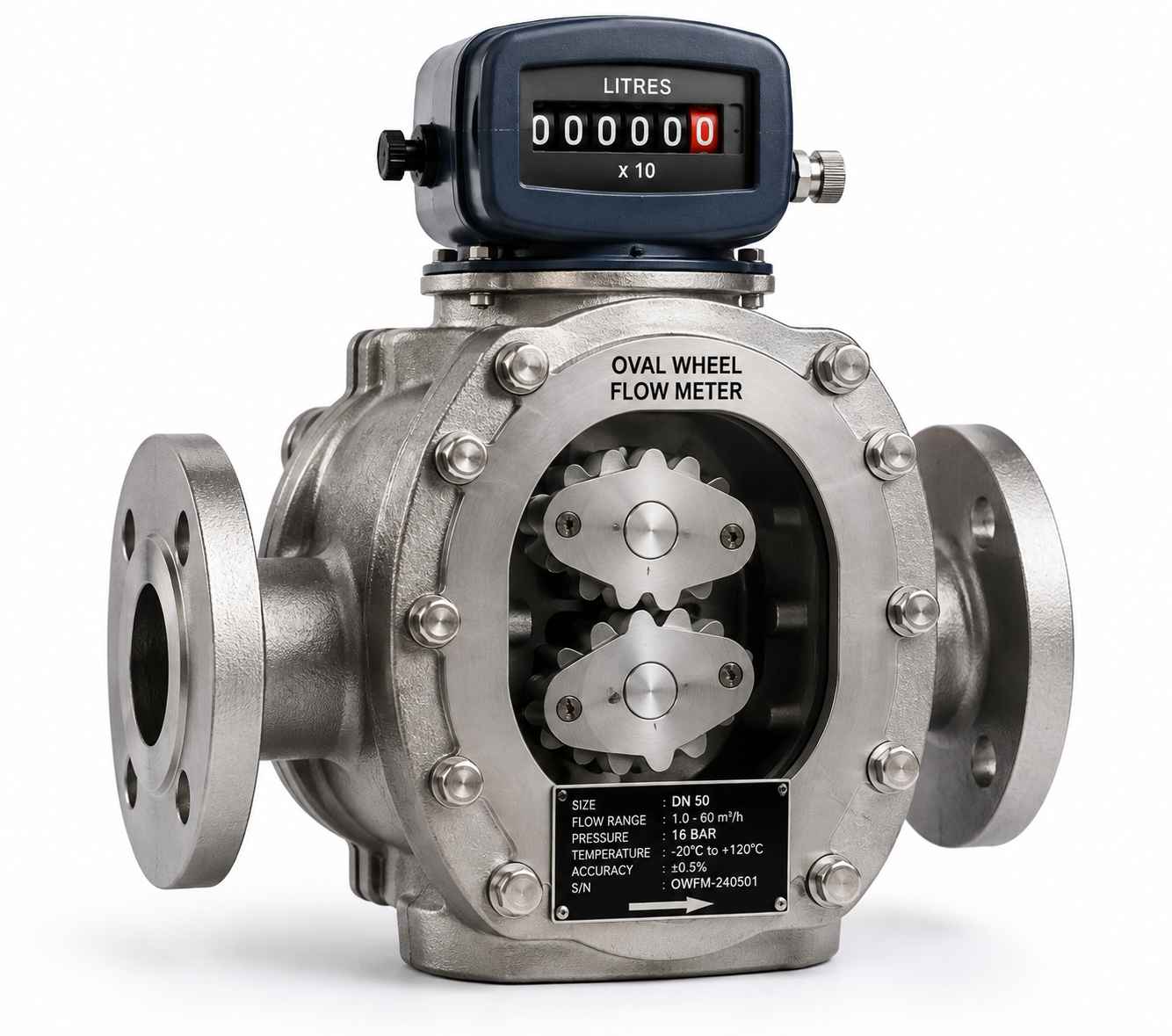

Oval Wheel Flow Meter

The Oval Wheel Flow Meter is a positive displacement flow measurement instrument designed for accurate and reliable measurement of liquids across a wide range of industrial applications. It operates by using two precision-machined oval-shaped rotors inside a measuring chamber. As liquid passes through the meter, the rotors rotate and displace a known volume of liquid, allowing the flow rate and total volume to be measured accurately.

Its positive displacement measuring principle provides excellent accuracy and repeatability, particularly for applications requiring reliable measurement of viscous and clean liquids. The meter is designed for continuous operation and can be supplied with mechanical or electronic display and output options depending on the application requirements.

Key Features

• High measurement accuracy and repeatability
• Positive displacement measuring principle
• Precision oval rotor design
• Excellent performance with viscous liquids
• Reliable measurement at low and medium flow rates
• Compact and robust construction
• Low flow measurement capability
• Suitable for continuous operation
• Mechanical and electronic display options
• Pulse and other output options available
• Easy installation and maintenance
• Long operational service life

Working Principle

The Oval Wheel Flow Meter works on the positive displacement principle. Inside the meter body, two oval-shaped rotors rotate as the liquid flows through the measuring chamber.

Each complete rotation of the rotors displaces a predetermined volume of liquid. The rotation is detected mechanically or electronically and converted into a flow measurement. The number of rotor rotations is proportional to the total volume of liquid passing through the meter.

This design provides accurate measurement even when the flow rate changes, making the meter suitable for applications where precise liquid measurement is required.

Technical Specifications

Parameter	Specification
Product Type	Oval Wheel / Positive Displacement Flow Meter
Measuring Principle	Positive Displacement
Measuring Element	Oval Rotors
Medium	Liquid
Flow Direction	Bidirectional / Model Dependent
Nominal Size	Model Dependent
Accuracy	Model Dependent
Repeatability	Model Dependent
Body Material	Cast Iron / Stainless Steel / Model Dependent
Rotor Material	Stainless Steel / Alloy / Model Dependent
Connection	Threaded / Flanged / Model Dependent
Display	Mechanical / Digital
Output	Pulse / 4–20 mA / Model Dependent
Operating Pressure	Model Dependent
Operating Temperature	Model Dependent
Flow Range	Model Dependent
Viscosity Range	Application Dependent
Protection Rating	Model Dependent

Applications

The Oval Wheel Flow Meter is suitable for measuring a variety of industrial liquids and is commonly used in:

• Oil & Lubricant Measurement
• Chemical Processing
• Fuel & Oil Handling
• Pharmaceutical Industries
• Food & Beverage Processing
• Paint & Coating Industries
• Resin & Adhesive Applications
• Industrial Liquid Transfer
• Dosing and Batching Systems
• Process Control Systems
• Tank Filling Systems
• General Industrial Applications

Advantages

The positive displacement design allows the Oval Wheel Flow Meter to provide reliable measurement over a broad operating range. It is particularly useful for liquids where accurate measurement at relatively low flow rates is required.

Its ability to handle higher-viscosity liquids makes it suitable for applications involving oils, lubricants, resins, chemicals, and other process fluids. The precision rotor mechanism also provides consistent measurement and excellent repeatability.

The meter can be configured with different body materials, connection types, display arrangements, and output options to suit specific process requirements.

Installation & Operation

The Oval Wheel Flow Meter should be installed in the correct flow direction and according to the manufacturer’s recommended installation requirements. The pipeline should be properly supported, and the liquid should be free from particles that could interfere with the precision measuring mechanism.

For optimum performance, the meter should be selected according to the flow range, liquid viscosity, operating pressure, temperature, chemical compatibility, pipe size, and required accuracy.

Industries Served

Oil & Lubricants | Chemical | Pharmaceutical | Food & Beverage | Paint & Coatings | Fuel | Industrial Processing | Liquid Transfer

Product Note

Exact specifications such as flow range, accuracy, pressure rating, temperature range, connection size, rotor material, and output configuration vary according to the selected model. Please refer to the relevant product datasheet for final technical specifications.
